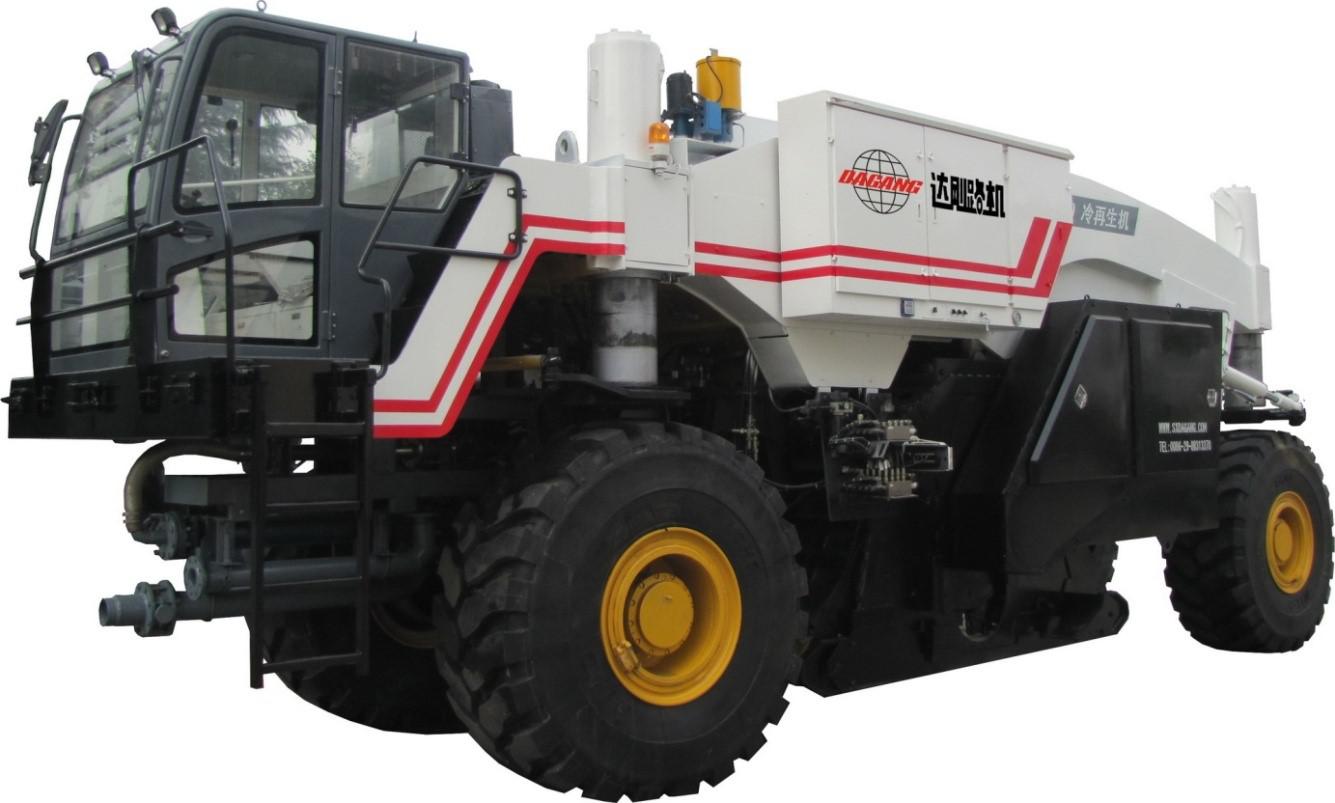

Asphalt Pavement Cold In-place Recycler

EQUIPMENT INTRODUCTION

Cold In-Place Recycling (CIR) is an asphalt pavement rehabilitation technique that reduces the life cycle cost of the pavement structure by reusing the existing aggregates and asphalt materials. The cold nature of the process reduces the impact on the environment and preserves energy due to the absence of heat application. Our Cold In-place Recycler was specially designed for CIR pavement rehabilitation. When cold recycling in-situ, the cold recycler mills and granulates the existing pavement material while homogeneously mixing in binding agents and water at the same time. It produces a new construction material mix in just one single machine pass. The Cold recyclers are equipped with powerful milling and mixing rotors and with highly efficient injection systems. This method produces a base layers of high bearing capacity.



PERFORMANCE INTRODUCTION

  • 1
    Parts applied such as transfer case,hydraulic clutch, milling reducer are all world-famous brands products, which can improve the working reliability and efficiency to a large extent.
  • 2
    The adopted high-power Cummins engine has strong power, stable power output and reliable performance. It has strong power reserve capacity to meet various power demands for road mixing, breaking and cold in-place recycling.
  • 3
    Full hydraulic four-wheel drive system and all-wheel steering system are adopted to meet all kinds of driving conditions. The steering mode such as front wheel steering, rear wheel steering, full wheel steering and “CRAB MOVING” can be met. The flexible steering and fast moving make it operate easily in narrow space.
  • 4
    Milling rotor is driven by a set of narrow V-belt with high tension. The belt tension is controlled by an hydraulic cylinder auto-tension mechanism with great transmitted power.
  • 5
    Control system adopts ultrasonic balance beam, tilting angle sensor, magnetostrictive displacement sensor and proximity sensor etc. to adjust its operation posture, to make the equipment to run according to the preset parameter and meet the requirements for construction flatness.
  • 6
    Introducing reliable and accurate flow measurement and technical process to control the flowing rate of water, foam emulsion and emulsified bitumen, and control materials proportioning to ensure the best construction quality.

TECHNICAL PARAMETERS

Milling system

Max. Milling Width (mm)

2500

Theoretical Speed

(m/min)

High

Speed

I Gear

0 to 60

Max. Milling Depth (mm)

400

II Gear

0 to165

Tools Nos.

218

Low

Speed

First

Gear

0 to15

Rotor Dia. (mm)

1480

Second

Gear

0 to 40

Engine

Brand

COMMINS

Rotor Speed

(r/min)

I Gear

82

Model

KTA19-C/L600

II Gear

95

Cylinder Nos.

6 cylinders

III Gear

105

Rated Power (kW)

448

IV Gear

122

Rated Speed (r/min)

2100

Gear

129

Weight

Gross Weight (kg)

36000

Tire

Type

LCHS drive

Front Axle Weight (kg)

18000

Size

26.5-25

Rear Axle Weight (kg)

18000

Tank Capacity (L)

Fuel Tank

1500

Total Weight (kg)

38000

Hydraulic Tank

350

Voltage

Control System (V)

24

Water Tank

780

Asphalt Heating System (V)

220

Overall DimensionsL×W×H(m)

9.5×3.3×3.25
