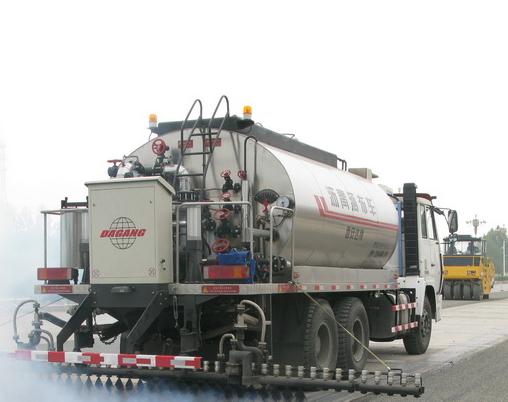

Intelligent(Rubber ) Asphalt Distributor

EQUIPMENT INTRODUCTION

This equipment was specially designed to accurately distributing/spraying different kinds of asphalt materials, such as hot asphalt, asphalt emulsion, modified asphalt, asphalt rubber, etc. It is mainly composed of truck chassis, insulated asphalt tank, computer-control spraying system, automatic-control heating system, asphalt circulating and pumping system, hot oil heating and circulating system, hydraulic system, pneumatic system, operating panel and integrated control unit. This equipment was firstly developed and manufactured by our company in China.



PERFORMANCE INTRODUCTION

  • 1
    Asphalt spraying operations can be conducted through the operating panel in the cab by one operator or the driver.
  • 2
    The spraying width is adjustable. Each spraying nozzle can be controlled automatically and independently, and the maximum spraying width can reach 6 meters.
  • 3
    Unique nozzles design can achieve triple-overlapping asphalt spray to guarantee uniformly spraying.
  • 4
    Asphalt spraying amount can be metered and controlled, which is not affected by truck speed.
  • 5
    Equipped with safe and reliable automatic-control Burner and hot oil heating system.
  • 6
    After finishing spray, the asphalt pipelines and pump are not required to clean and flush by diesel oil. It makes use of pneumatic system to purge the asphalt remained in the pipelines and pump back into the asphalt tank, and makes use of hot oil circulation to ensure pipelines and spraying nozzles not to block.
  • 7
    The control system introduces modular design, which is easy for troubleshooting and maintenance.
  • 8
    A standby control system is available and can be started immediately to ensure non-stop spraying once the main control system failed.
  • 9
    The asphalt rubber distributor is equipped with two agitators on the top of tank
  • 10
    Equipped with a flexible hand-spraying system.
  • 11
    Excellent heat-preserving performance and the average temperature drop is less than 1 ℃/h.
  • 12
    Asphalt can be filled and discharged by the pump as well as filling asphalt through the manhole.

TECHNICAL PARAMETERS

Asphalt

Tank(L)

Confi

guration

Model

Chassis

Model

Max.

Spray

ing

Width

(mm)

Spraying

Rate

(kg/m2)

Spray

ing

Preci

sion

(%)

Asphalt

Heating

Mode

Heat

Preserving

Capacity

/h

Total

Mass

(kg)

Overall

Dimensions

(LxWxH)

(mm)

12000

Enhanced

(rubber asphalt)

DGL5250GLS

SX1255UM434

6000

0.5-5

1

Thermal

Oil

Heating

2x18x104

kcal/h

1

25000

10530x2500x3400

DGL5251GLS

ZZ1257M4347C

25000

10400x2500x3400

tandard

DGL5250GLS

SX1255UM434

0.2-3

Thermal

Oil

Heating

18x104

kcal/h

25000

10530x2500x3400

DGL5251GLS

ZZ1257M4347C

25000

10400x2500x3400

Enhanced

DGL5250GLS

SX1255UM434

25000

10530x2500x3400

DGL5251GLS

ZZ1257M4347C

25000

10400x2500x3400

8000

Economical

DGL5161GLS

BJ5163ELFFA

Thermal

Oil

Heating

14x104

kcal/h

15800

8050x2400x3250

Standard

DGL5160GLS

SX1165UN461

16000

8900x2500x3320

DGL5164GLQ

ZZ1167M4617C

16000

8985x2500x3320

Enhanced

DGL5160GLS

SX1165UN461

16000

8900x2500x3320

DGL5164GLQ

ZZ1167M4617C

16000

8985x2500x3320

5000

Standard

DGL5120GLS

EQ1120GJ12D5

12495

8000x2250x2890
