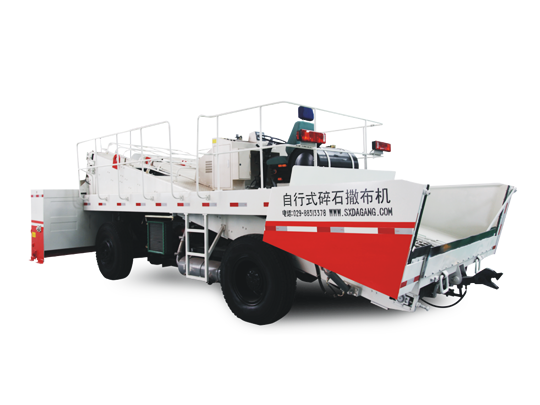

SS6000 Self-propelled Chip Spreader
EQUIPMENT INTRODUCTION
This equipment is specially designed to spread aggregate/chips in road construction. There are three models and types optional: SS4000 Self-propelled Chip Spreader, SS3000C Pull-type Chip Spreader and XS3000B Lift-type Chip Spreader.
PERFORMANCE INTRODUCTION
-
1
This model of Chip Spreader is driven by the truck by its traction unit and moves backward during working. When truck is empty, it is released manually and another truck attaches to the Chip Spreader to continue to work.
-
2
It is mainly composed of a traction unit, two driving wheels, drive train for auger and spreader roll, spread hopper, braking system, etc.
-
3
The application rate can be adjusted by rotation speed of spread roll and main gate opening. There are a series of radial gates that are readily adjustable to the desired spread width.
TECHNICAL PARAMETERS
| Model | SS3000C | XS3000B | SS3500A | SS4000 | SS6000 | |
| Aggregate Size（mm） | 3-30 | 3-25 | 3-25 | 3-30 | 3-30 | |
| Spreading Width（mm） | 3000（级差Difference at 250） | 3000（级差Difference at 250） | 3000（级差Difference at 250） | 3000（级差Difference at 250） | 3000（级差Difference at 250） | |
| Max. Spreading rate （L/m2） | 22 | 22 | 22 | 22 | 22 | |
| Min. Spreading rate（L/m2） | 3 | 3 | 3 | 2 | 3 | |
| Spreading Speed（km/h） | 3-4.8 | 3-4.8 | 3-4.8 | 2.5-5 | 2.5-7 | |
| Total Mass(kg) | / | / | / | 23 | 23 | |
| Overall Dimension(LxWxH)（mm） | Transporting Dimensions | 2500 | 2500 | 2500 | 2500 | 2500 |
| Transporting Dimensions | / | / | / | 7660×4240×3660 | 7660×4240×3660 | |
| Engine Model | / | / | / | WP10.270E32 | QSB6.7-C220 | |
