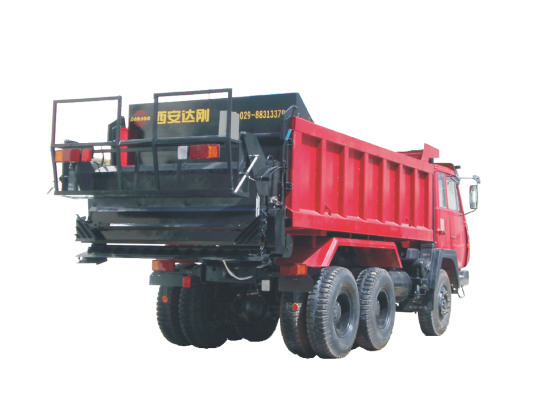

XS3000B Lift-type Chip Spreader

EQUIPMENT INTRODUCTION

This equipment is specially designed to spread aggregate/chips in road construction. There are three models and types optional: SS4000 Self-propelled Chip Spreader, SS3000C Pull-type Chip Spreader and XS3000B Lift-type Chip Spreader.



PERFORMANCE INTRODUCTION

  • 1
    The application rate can be adjusted by rotation speed of spread roll and main gate opening. There are a series of radial gates that are readily adjustable to the desired spread width

TECHNICAL PARAMETERS

Model SS3000C XS3000B SS3500A SS4000 SS6000
Aggregate Sizemm 3-30 3-25 3-25 3-30 3-30
Spreading Widthmm 3000(级差Difference at 250 3000(级差Difference at 250 3000(级差Difference at 250 3000(级差Difference at 250 3000(级差Difference at 250
Max. Spreading rate L/m2 22 22 22 22 22
Min. Spreading rateL/m2 3 3 3 2 3
Spreading Speedkm/h 3-4.8 3-4.8 3-4.8 2.5-5 2.5-7
Total Mass(kg) / / / 23 23
Overall Dimension(LxWxH)mm Transporting Dimensions 2500 2500 2500 2500 2500
Transporting Dimensions / / / 7660×4240×3660 7660×4240×3660
Engine Model / / / WP10.270E32 QSB6.7-C220
