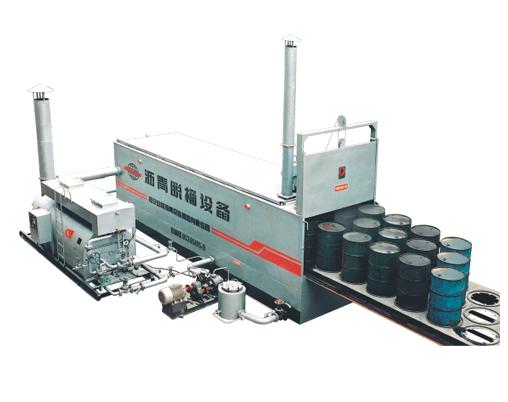

DT Series Drummed Asphalt Melter
EQUIPMENT INTRODUCTION
This equipment was specially designed to decant and heat up drummed asphalt. It is mainly composed of Main Body, Hot Oil Heater, Asphalt Pump Assembly and Filtering System. This equipment was firstly developed and manufactured by our company in the world in 1978 and the patent no. is 95245105.0.
PERFORMANCE INTRODUCTION
-
1
High efficiency: it can decant up to 44 numbers of drummed asphalt per batch per hour.
-
2
High reliability: equipped with automatic-control and hot oil indirectly heating system
-
3
Protecting environment: closed-construction and minimum pollution.
-
4
Saving energy: it recycles the hot waste gas (320-450℃) of Burner to heat up and decant drummed asphalt and saves 50% energy sources.
-
5
It can thoroughly decant asphalt out of drums and ensure the minimum waste of asphalt.
-
6
Equipped with asphalt filtering system: it can perfectly filter the impurities in asphalt and guarantee quality of asphalt.
-
7
Equipped conveniently asphalt pumping and circulating system: it can circulate asphalt during heating and pump asphalt into tanks.
-
8
Easy to assemble and disassemble.
TECHNICAL PARAMETERS
|
Model |
DT3 |
DT6 |
DT8 |
|
Productivity (t/h) |
3-4 |
6-8 |
8-10 |
|
Asphalt Temp.(℃) |
120-140 |
120-140 |
120-140 |
|
Number of Drums per Batch |
20 |
32 |
44 |
|
Thermal Capacity of Hot Oil Heater(kcal/h) |
30×104 |
50×104 |
60×104 |
|
Thermal Oil Temp. (℃) |
200-240 |
200-240 |
200-240 |
|
Volume of Asphalt Reservoirs (L) |
9000 |
14000 |
18000 |
|
Total Power (kW) |
36 |
38 |
38 |
|
Total Weight (t) |
17 |
22 |
28 |
|
Overall Dimensions of Main Body (L×W×H) (mm) |
8000×1750×2560 |
9050×2550×2560 |
12000×2550×2560 |
|
Overall Dimensions of Hot Oil Heater |
4500×1700×2300 |
5000×1700×2300 |
5500×1700×2300 |
